We present the simulation of the intecation of the viscous vortex with the static shock wave obtained by the anisotropic hp-adaptation with the of of the space-time discontinuous Galerkin method. The problem setting is given here .

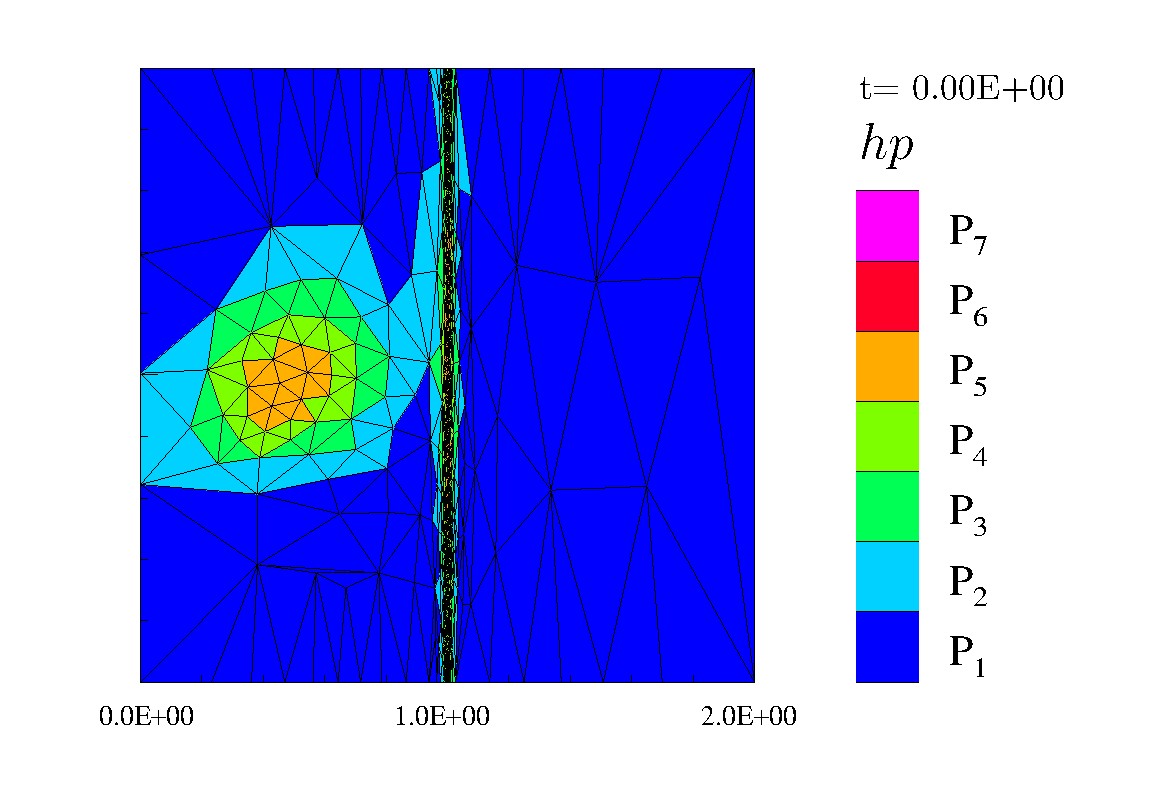

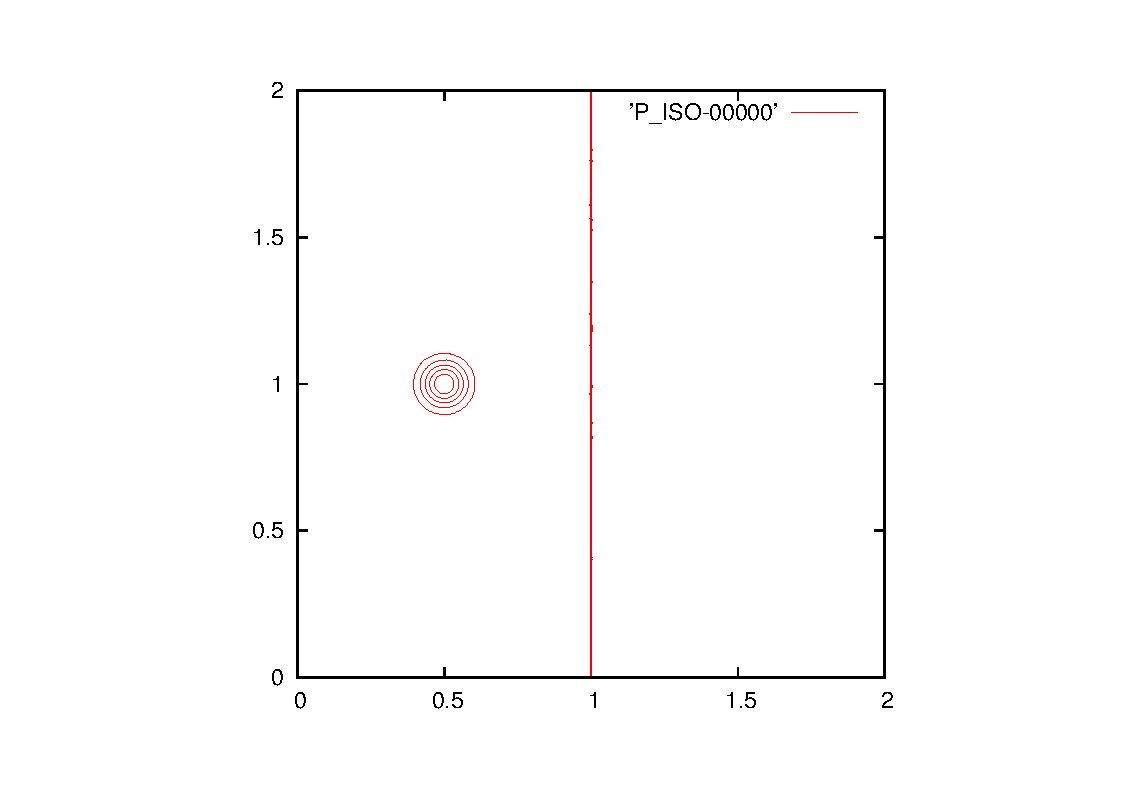

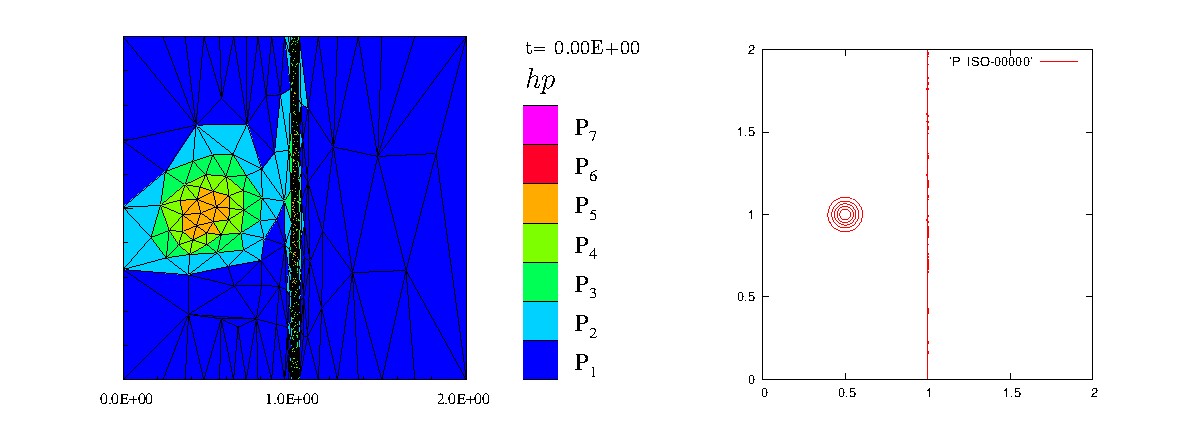

| Initial setting t=0.0 - isolines of the pressure | Anisotropic hp-mesh for t=0 |
 |
 |

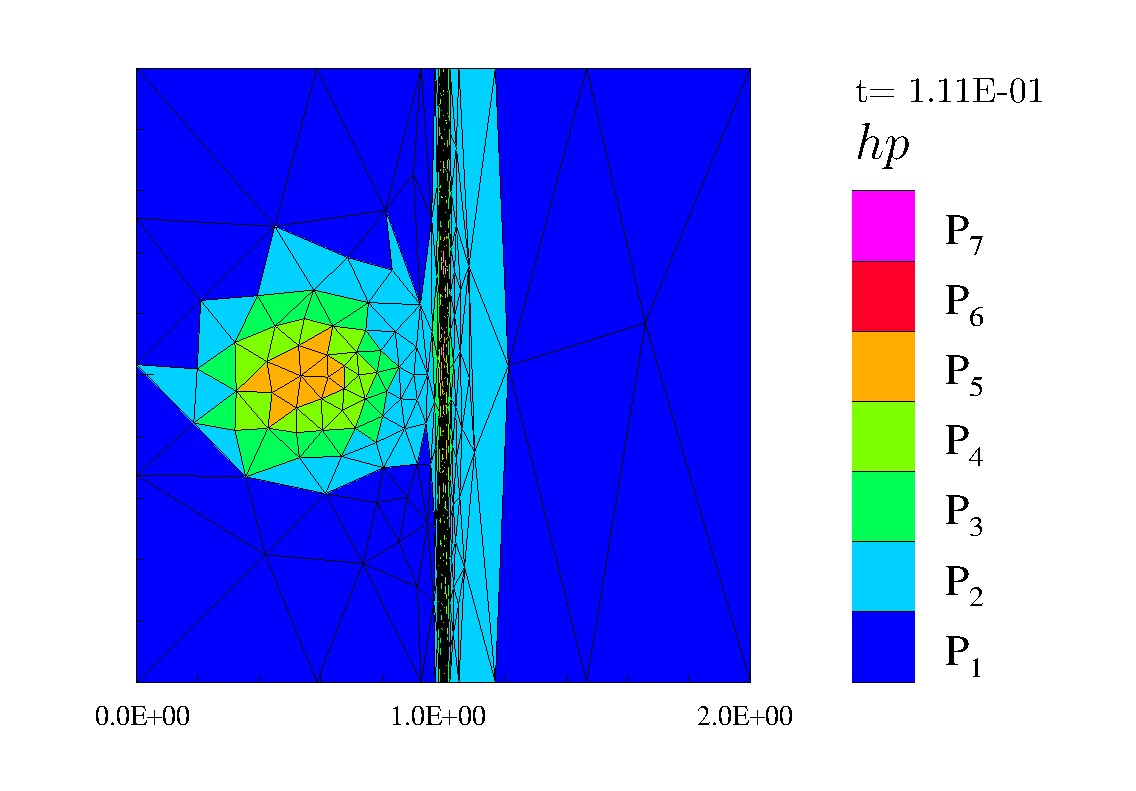

| Initial setting t=0.1 - isolines of the pressure | Anisotropic hp-mesh for t=.10 |
 |
 |

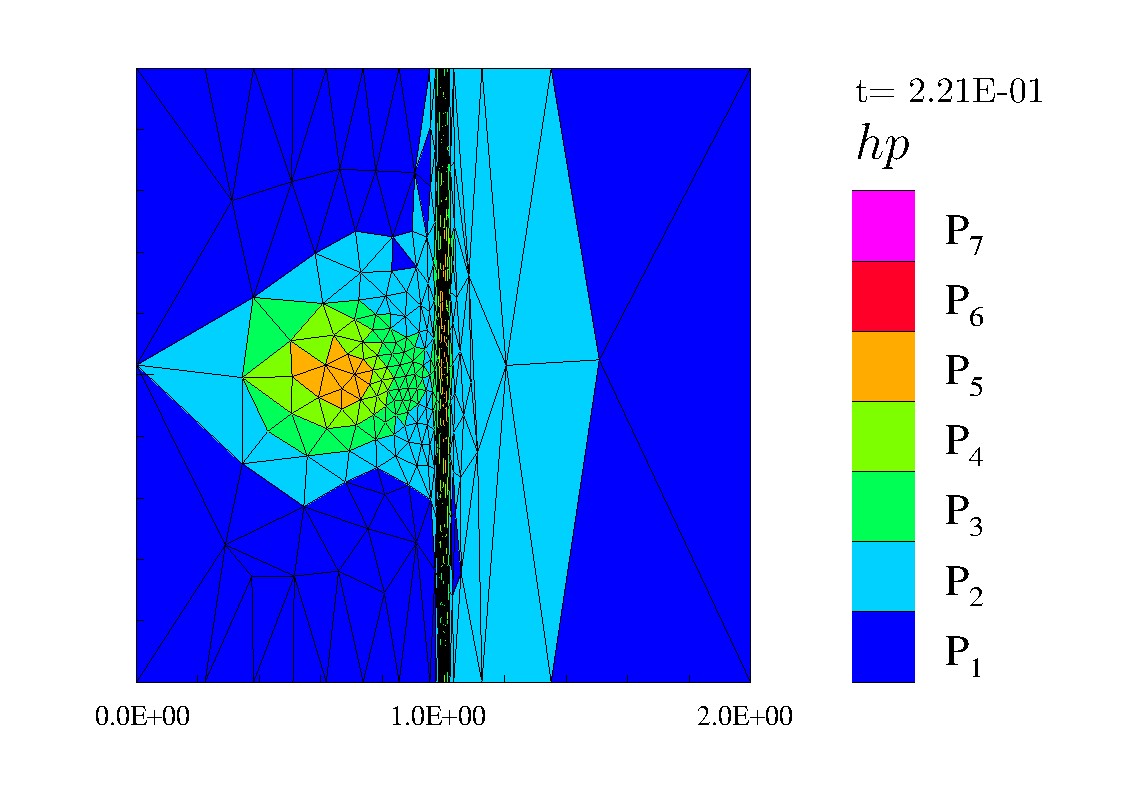

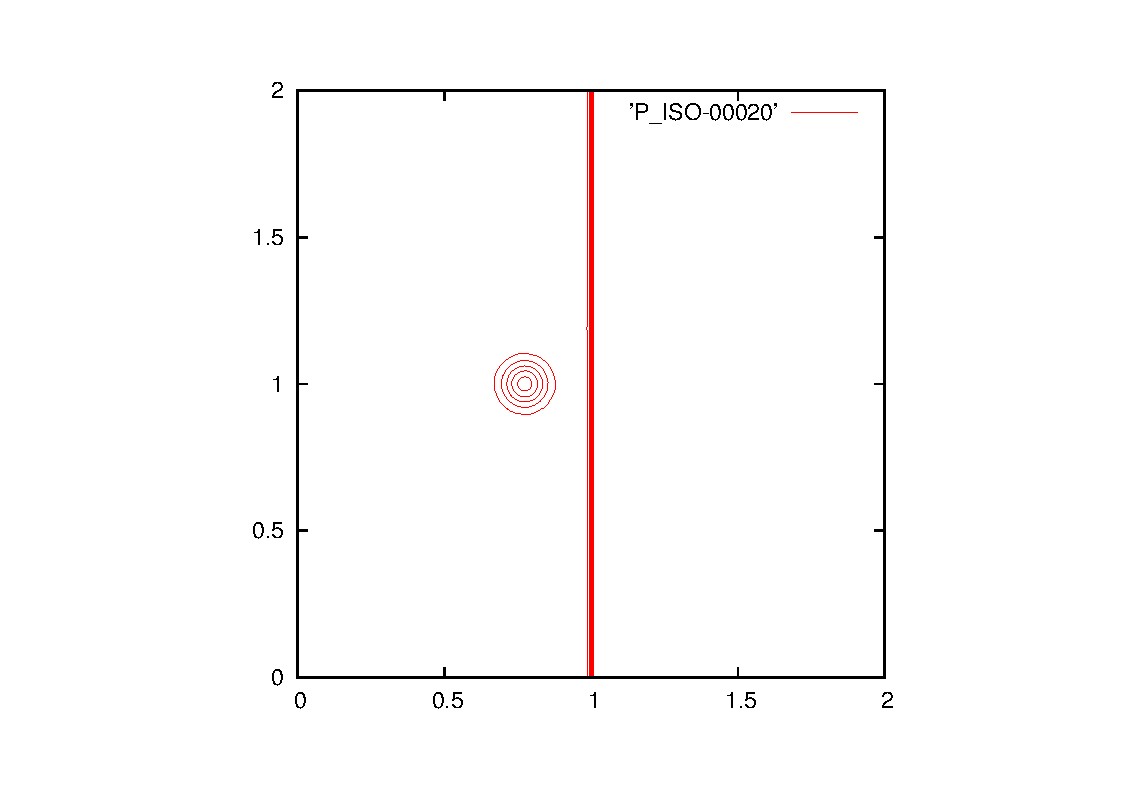

| Initial setting t=0.2 - isolines of the pressure | Anisotropic hp-mesh for t=0.2 |
 |
 |

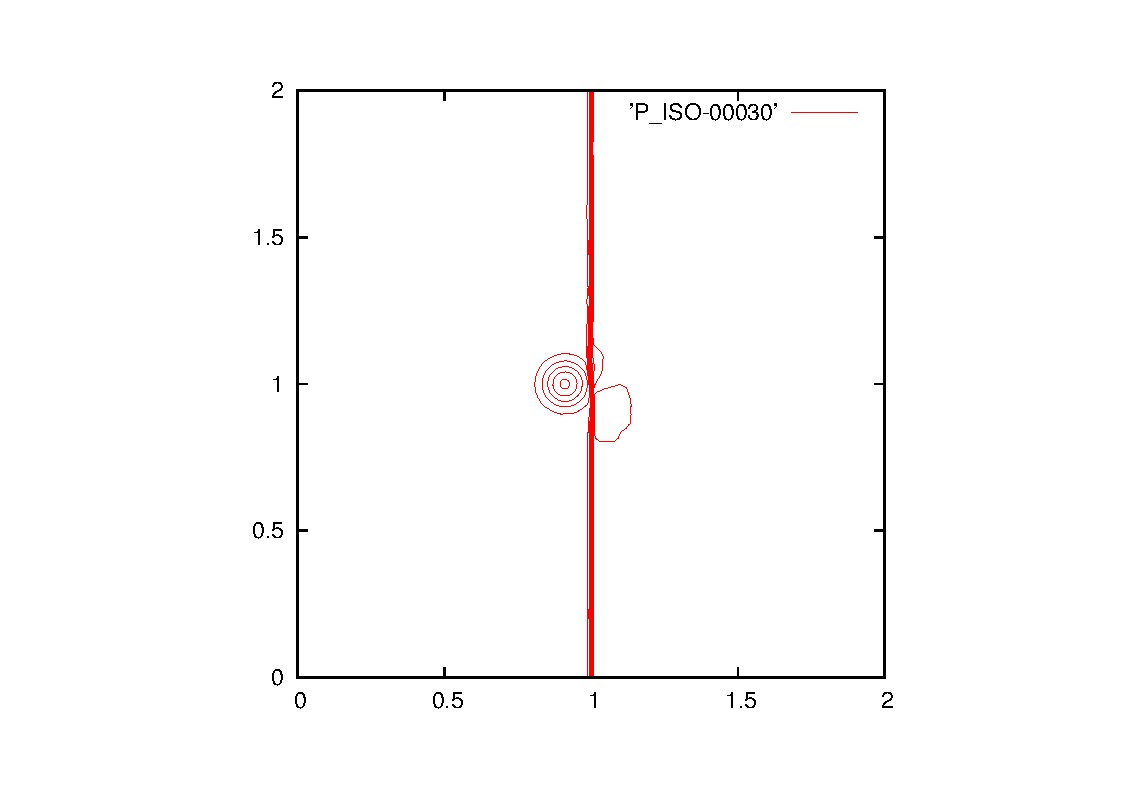

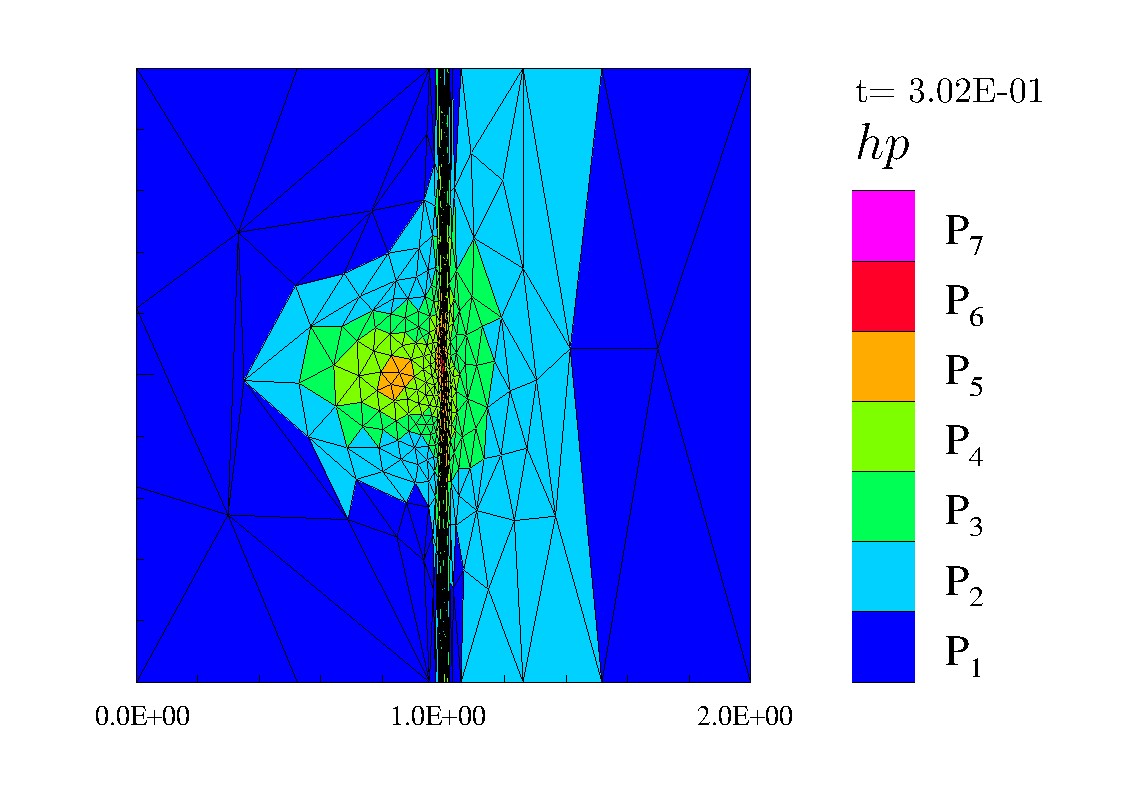

| Initial setting t=0.3 - isolines of the pressure | Anisotropic hp-mesh for t=0.3 |
 |
 |

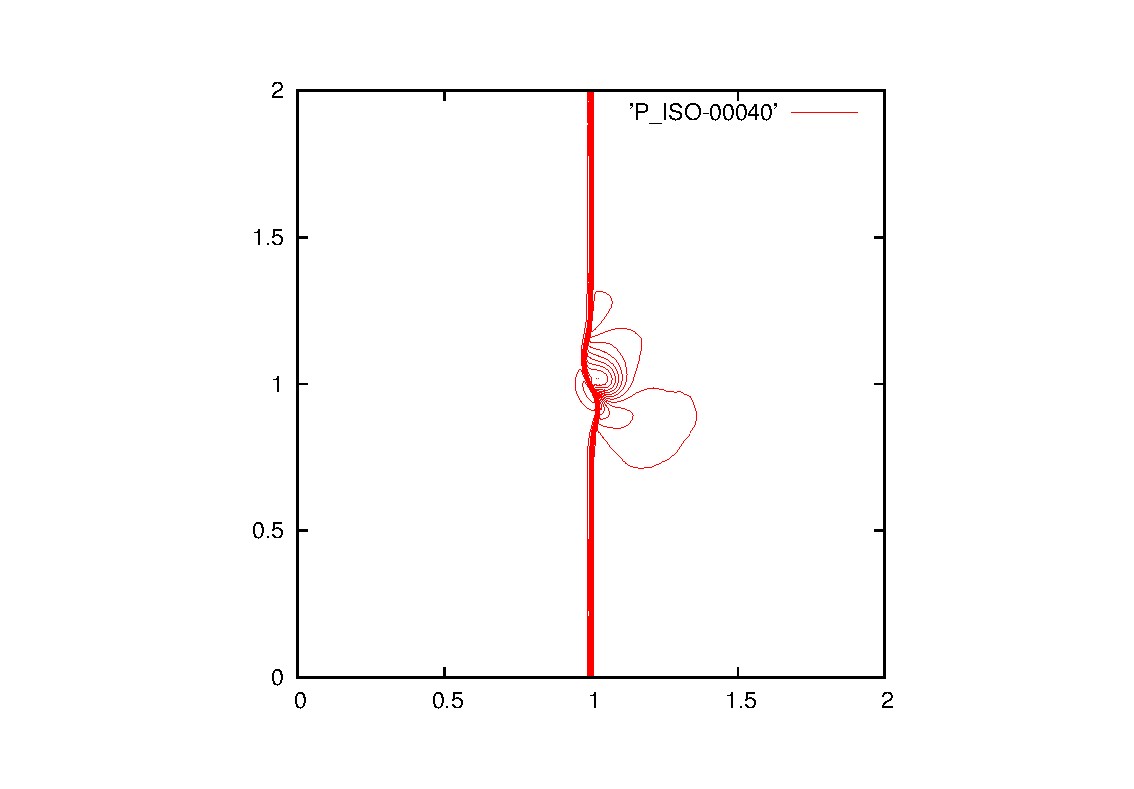

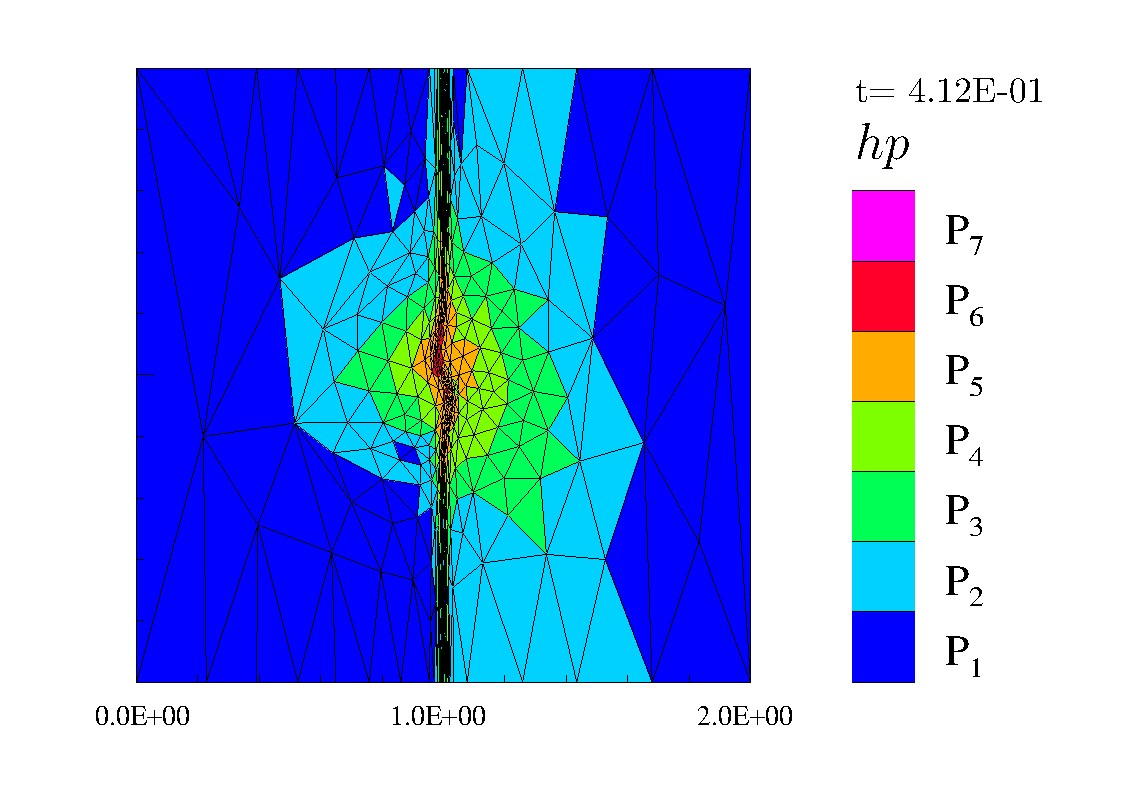

| Initial setting t=0.4 - isolines of the pressure | Anisotropic hp-mesh for t=0.4 |
 |
 |

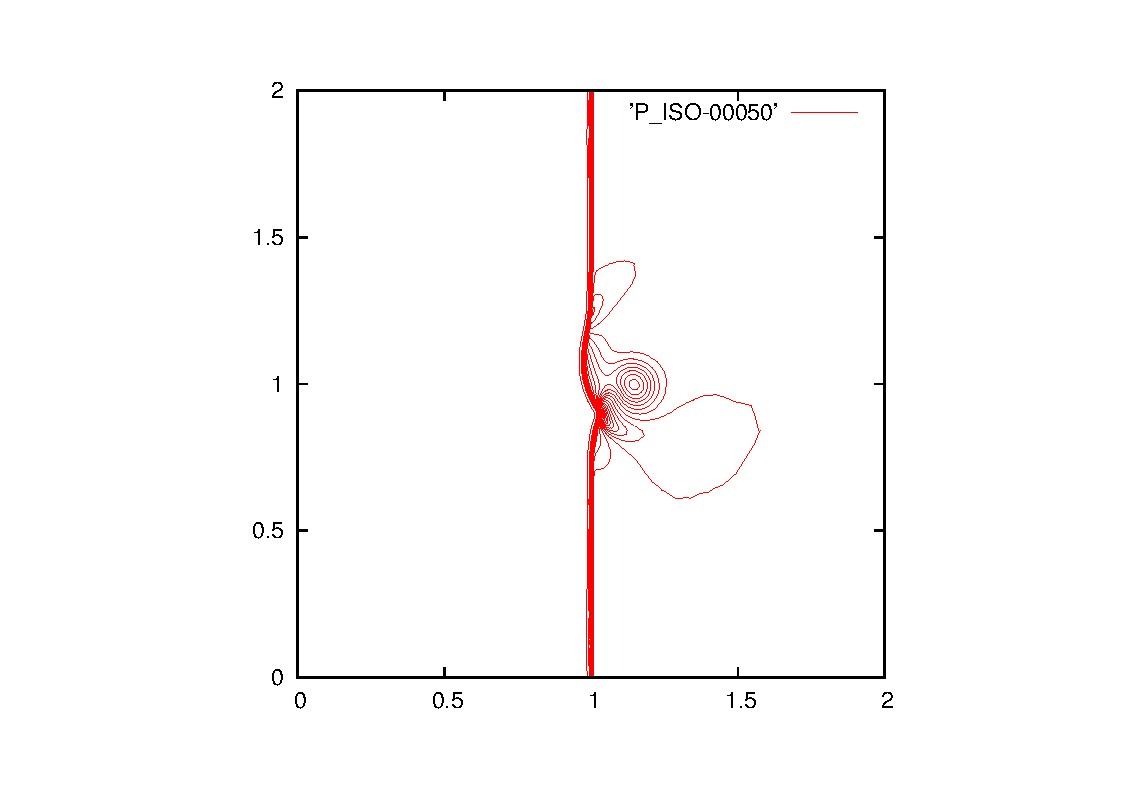

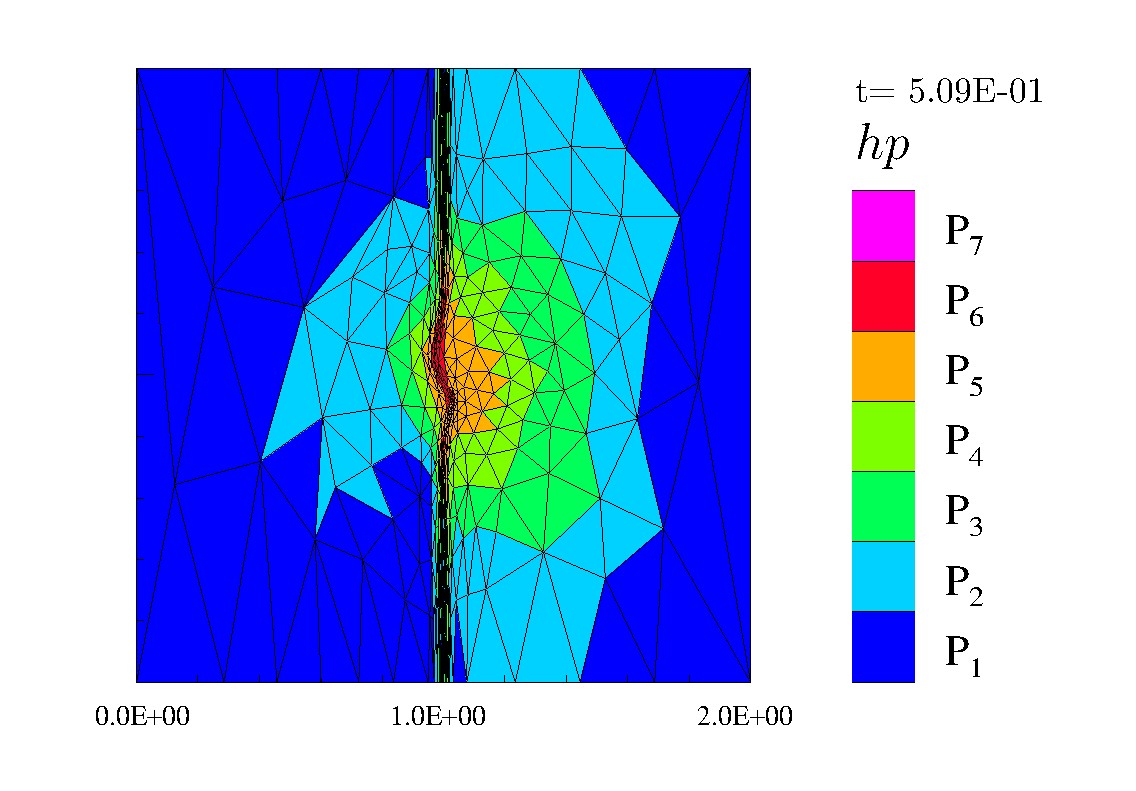

| Initial setting t=0.5 - isolines of the pressure | Anisotropic hp-mesh for t=0.5 |
 |
 |

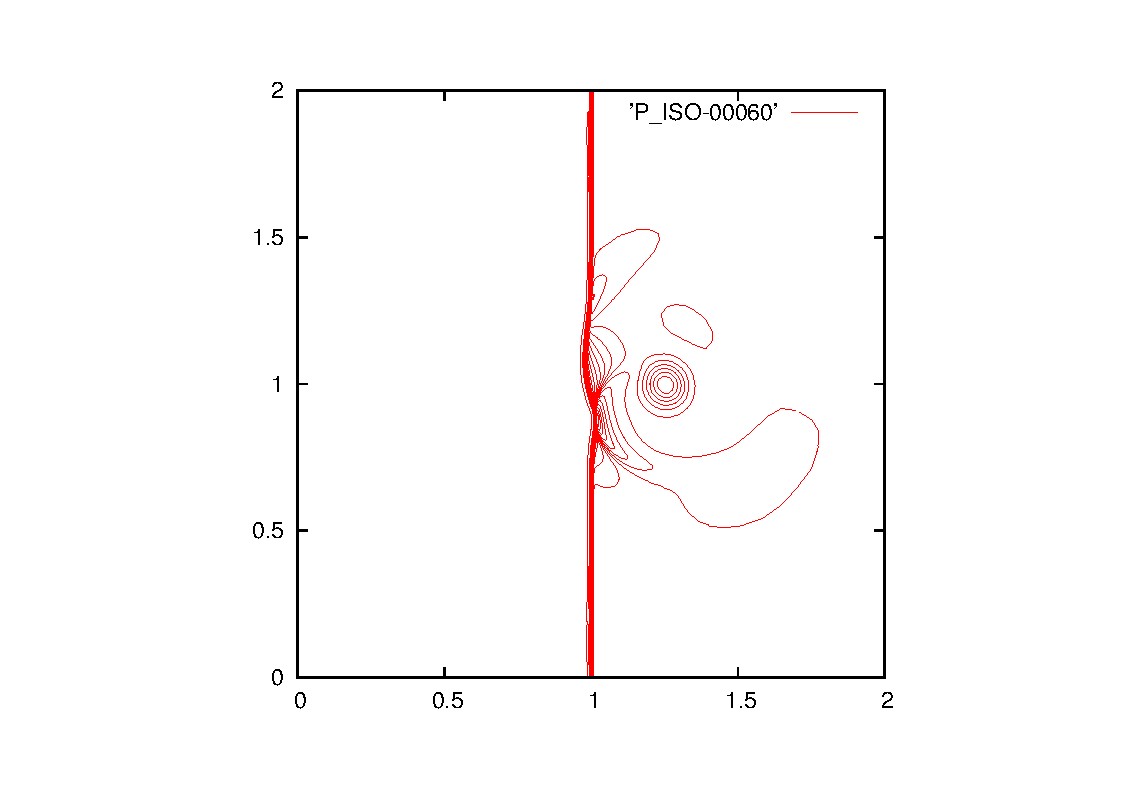

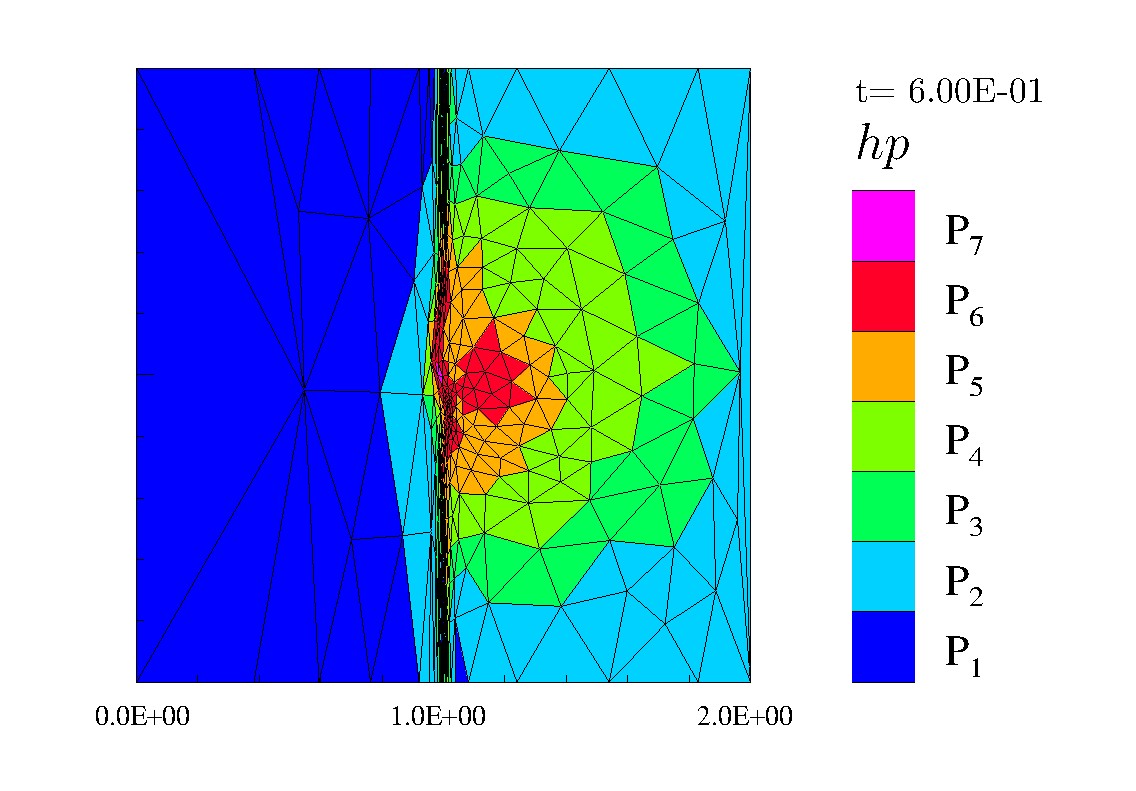

| Initial setting t=0.6 - isolines of the pressure | Anisotropic hp-mesh for t=0.6 |
 |
 |

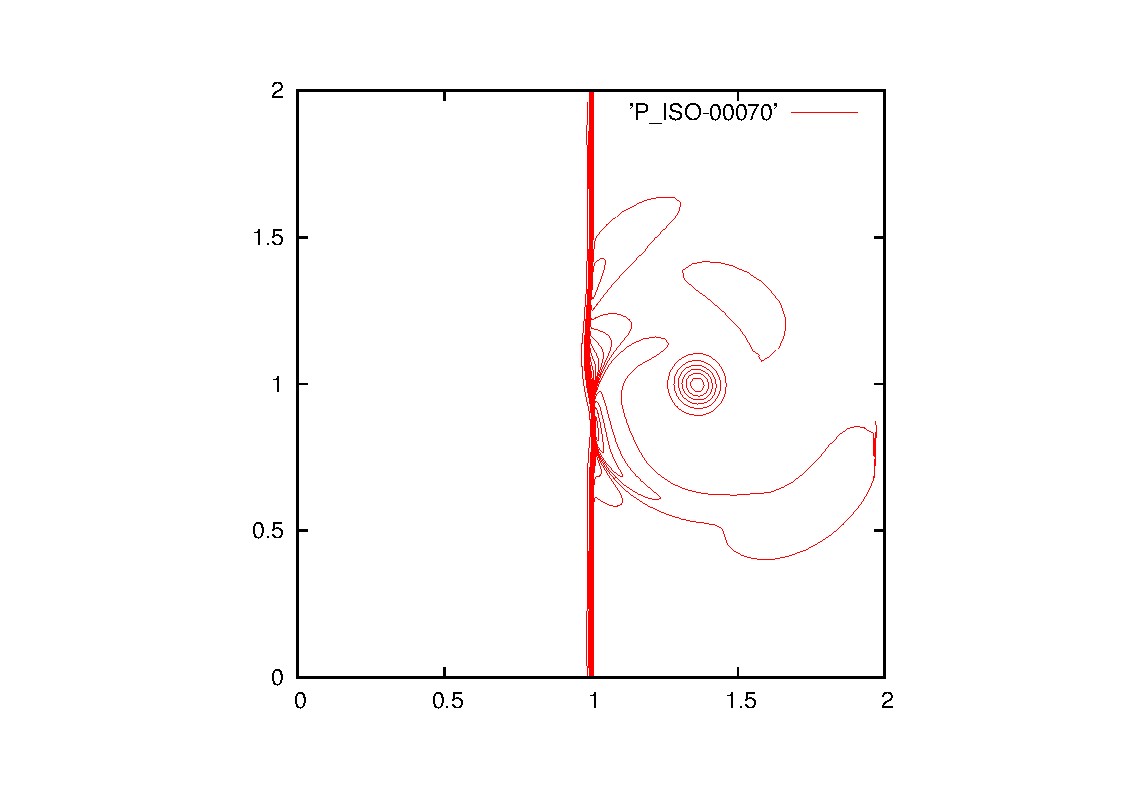

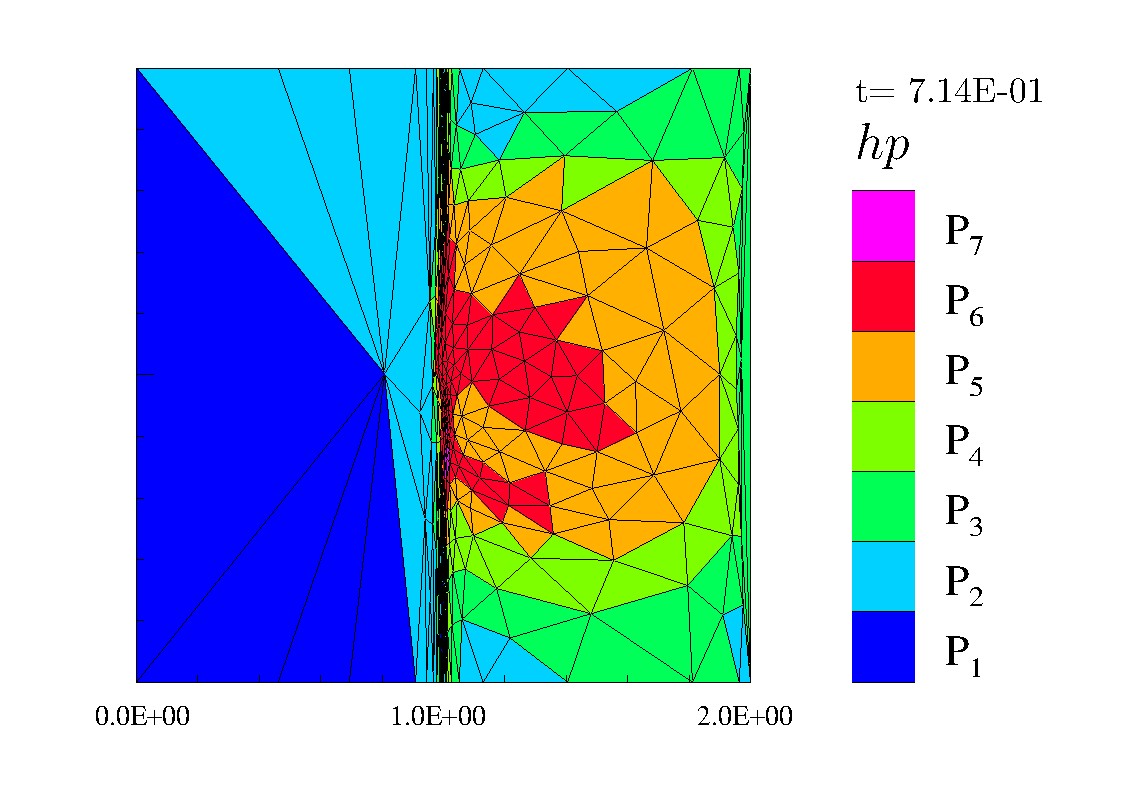

| Initial setting t=0.7 - isolines of the pressure | Anisotropic hp-mesh for t=0.7 |
 |
 |
