Question 2

We study the ordinary differential equation:

$\begin{array}{rll} x_1' &= (a-b) x_1- c x_2+x_1(x_3+d(1-x_3^2)) &= f_1(x) \\ x_2' &= c x_1+(a-b)x_2+x_2(x_3+d(1-x_3^2)) &= f_2(x) \\ x_3' &= a x_3-(x_1^2+x_2^2+x_3^2) &= f_3(x) \end{array}$

function q2_solution

a) Analysis of Steady States

We first study the steady state $x^*=(0,0,a)^T \in R^3$ analytically:

We first calculate the jacobian ($A$) at $x^*$:

$A = \left(\begin{array}{ccc} \frac{\partial f_1}{\partial x_1}(x^*) & \frac{\partial f_1}{\partial x_2}(x^*) & \frac{\partial f_1}{\partial x_3}(x^*) \\ \frac{\partial f_2}{\partial x_1}(x^*) & \frac{\partial f_2}{\partial x_2}(x^*) & \frac{\partial f_2}{\partial x_3}(x^*) \\ \frac{\partial f_3}{\partial x_1}(x^*) & \frac{\partial f_3}{\partial x_2}(x^*) & \frac{\partial f_3}{\partial x_3}(x^*) \\ \end{array}\right) = \left(\begin{array}{ccc} 2a-b+d-da^2 & -c & 0 \\ c & 2a-b+d-da^2 & 0 \\ 0 & 0 & -a \end{array}\right)$

We now calculate the spectrum $\sigma(A)$ using

$0 =\det(A-\lambda I) = ((2a-b-d-da^2-\lambda)^2+c^2)(-\lambda-a).$

From this we get that $\sigma(A) = \{-a, 2a-b+d-da^2+ci, 2a-b+d-da^2-ci\}$.

The steady state is A-stable if the maximum of the real parts of the eigenvalue is negative; i.e.,

$\max_{\lambda\in\sigma(A)} Re(\lambda)=\max(-a,2a-b+d-da^2)<0$

We consider for $b=3$, $c=0.25$, $d=0.2$ and all values of $a$; then,

$\max_{\lambda\in\sigma(A)} Re(\lambda)=\max(-a,2a-2.8-0.2a^2)<0$

We get that $\max_{\lambda\in\sigma(A)} Re(\lambda) < 0$ when $a\in(0,5-\sqrt{11})$ or $a>5+\sqrt{11}$.

Now we study numerically for $a=1.0,1.95,2.02$, $b=3$, $c=0.25$, $d=0.2$.

b = 3;
c = 0.25;
d = 0.2;

disp('--------------------------------------------------');
steady_state(1.0,b,c,d);
disp('--------------------------------------------------');
steady_state(1.95,b,c,d);
disp('--------------------------------------------------');
steady_state(2.02,b,c,d);
disp('--------------------------------------------------');

--------------------------------------------------
(a,b,c,d) = (1.000000,3.000000,0.250000,0.200000)

Jacobian:
  -1.000000000000000  -0.250000000000000                   0
   0.250000000000000  -1.000000000000000                   0
                   0                   0  -1.000000000000000

Eigenvalues:
 -1.000000000000000 + 0.250000000000000i
 -1.000000000000000 - 0.250000000000000i
 -1.000000000000000 + 0.000000000000000i

Maximum of real part of eigenvalues: -1.000000

Steady state is A-stable
--------------------------------------------------
(a,b,c,d) = (1.950000,3.000000,0.250000,0.200000)

Jacobian:
   0.339500000000000  -0.250000000000000                   0
   0.250000000000000   0.339500000000000                   0
                   0                   0  -1.950000000000000

Eigenvalues:
  0.339500000000000 + 0.250000000000000i
  0.339500000000000 - 0.250000000000000i
 -1.950000000000000 + 0.000000000000000i

Maximum of real part of eigenvalues: 0.339500

Steady state is NOT A-stable
--------------------------------------------------
(a,b,c,d) = (2.020000,3.000000,0.250000,0.200000)

Jacobian:
   0.423920000000000  -0.250000000000000                   0
   0.250000000000000   0.423920000000000                   0
                   0                   0  -2.020000000000000

Eigenvalues:
  0.423920000000000 + 0.250000000000000i
  0.423920000000000 - 0.250000000000000i
 -2.020000000000000 + 0.000000000000000i

Maximum of real part of eigenvalues: 0.423920

Steady state is NOT A-stable
--------------------------------------------------

b) $\omega$-limit

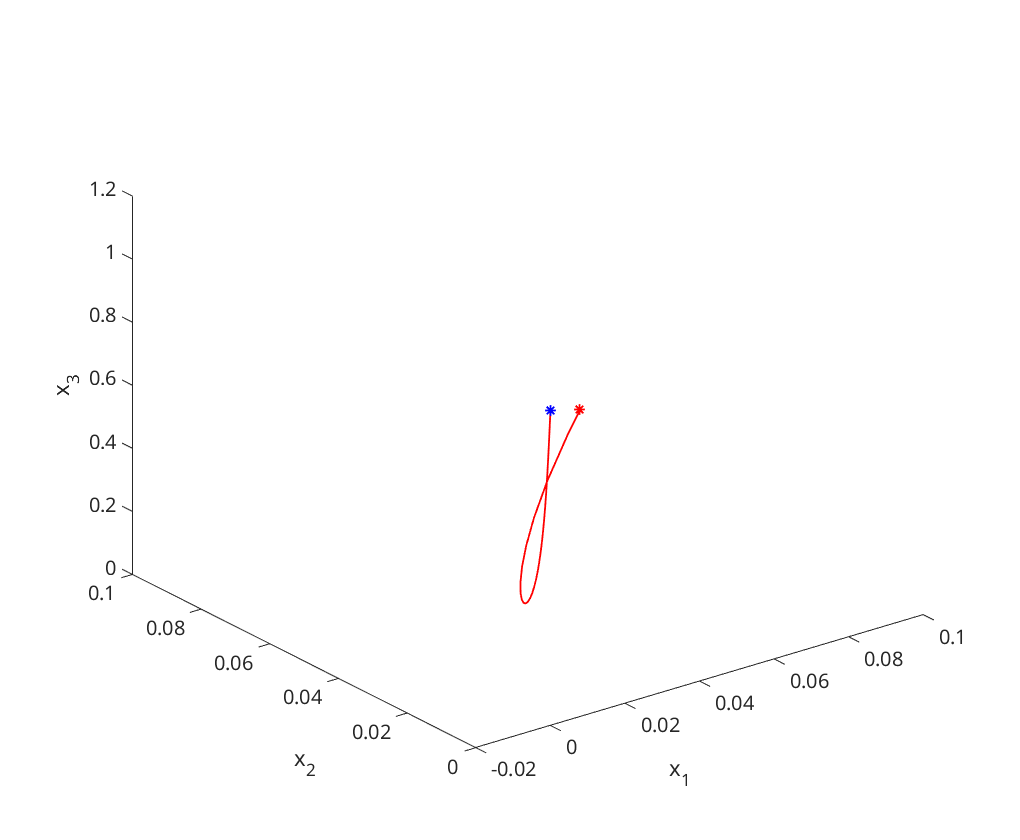

omega_limit(1.0,b,c,d);

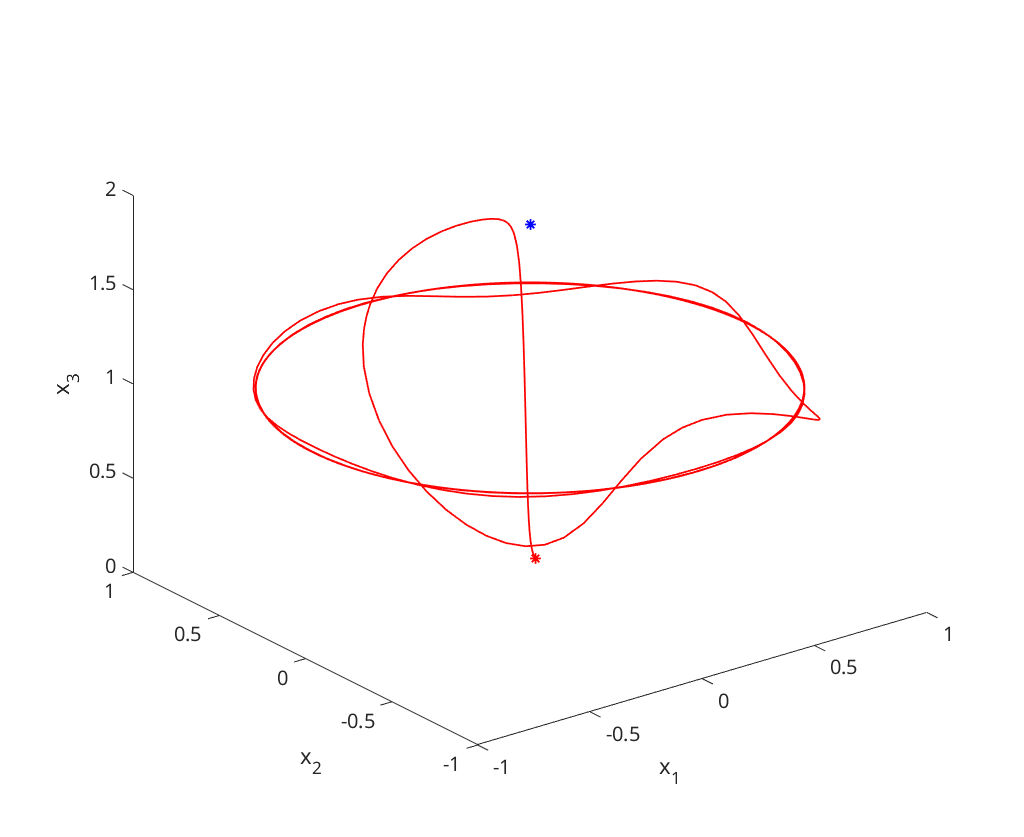

omega_limit(1.95,b,c,d);

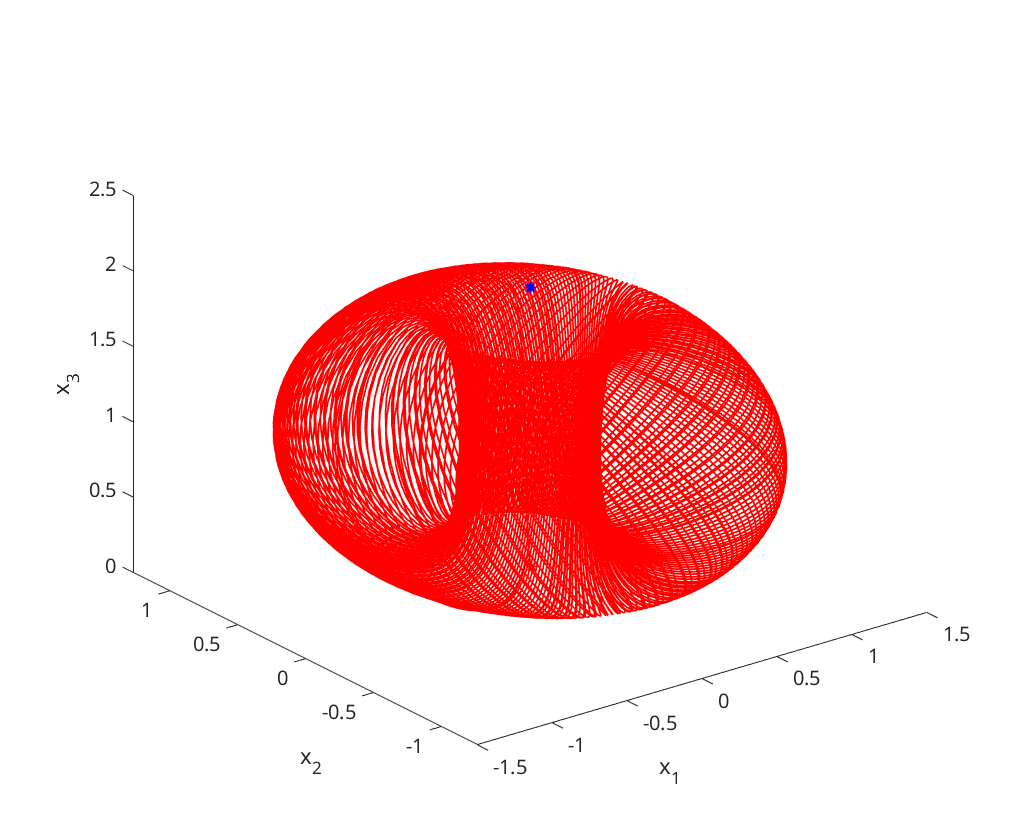

omega_limit(2.02,b,c,d);

Utility function for analysis of Steady State $x^*=(0,0)^T \in R^2$

function steady_state(a,b,c,d)

fprintf('(a,b,c,d) = (%f,%f,%f,%f)\n\n', a,b,c,d);

% Jacobian at steady state:
A = [2*a-b+d*(1-a^2), -c, 0; c, 2*a-b+d*(1-a^2), 0; 0, 0, -a];
disp('Jacobian:');
disp(A);

% Eigenvalues:
ev = eig(A);
disp('Eigenvalues:');
disp(ev);

% A-stable?:
fprintf('Maximum of real part of eigenvalues: %f\n\n', max(real(ev)));

if max(real(ev)) < 0
    disp('Steady state is A-stable')
else
    disp('Steady state is NOT A-stable')
end
end

Utility function to estimate $\omega$-limit

function omega_limit(a,b,c,d)
figure;

f = @(t,x)[ (a-b)*x(1)-c*x(2)+x(1)*(x(3)+d*(1-x(3)^2)); ...
    c*x(1)+(a-b)*x(2)+x(2)*(x(3)+d*(1-x(3)^2)); ...
    a*x(3)-(x(1)^2+x(2)^2+x(3)^2) ];

x0 = [.1;.1;.1];
xstar = [0;0;a];
plot3(x0(1),x0(2),x0(3),'r*');
hold on;
plot3(xstar(1),xstar(2),xstar(3),'b*');
[~,x]=ode23s(f, [0,2000], x0);

plot3(x(:,1),x(:,2),x(:,3),'r');

xlabel('x_1');
ylabel('x_2');
zlabel('x_3');

end

end
